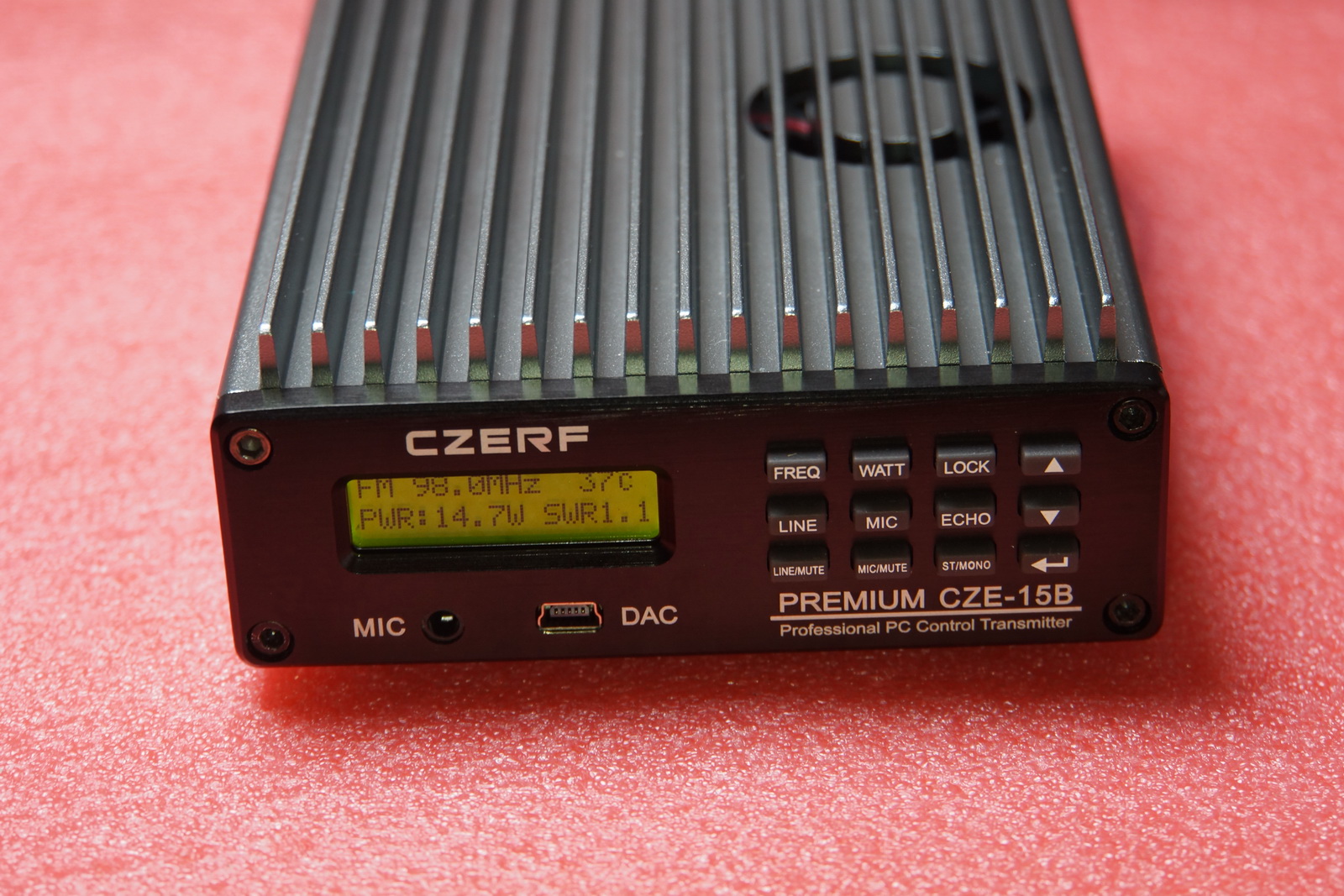

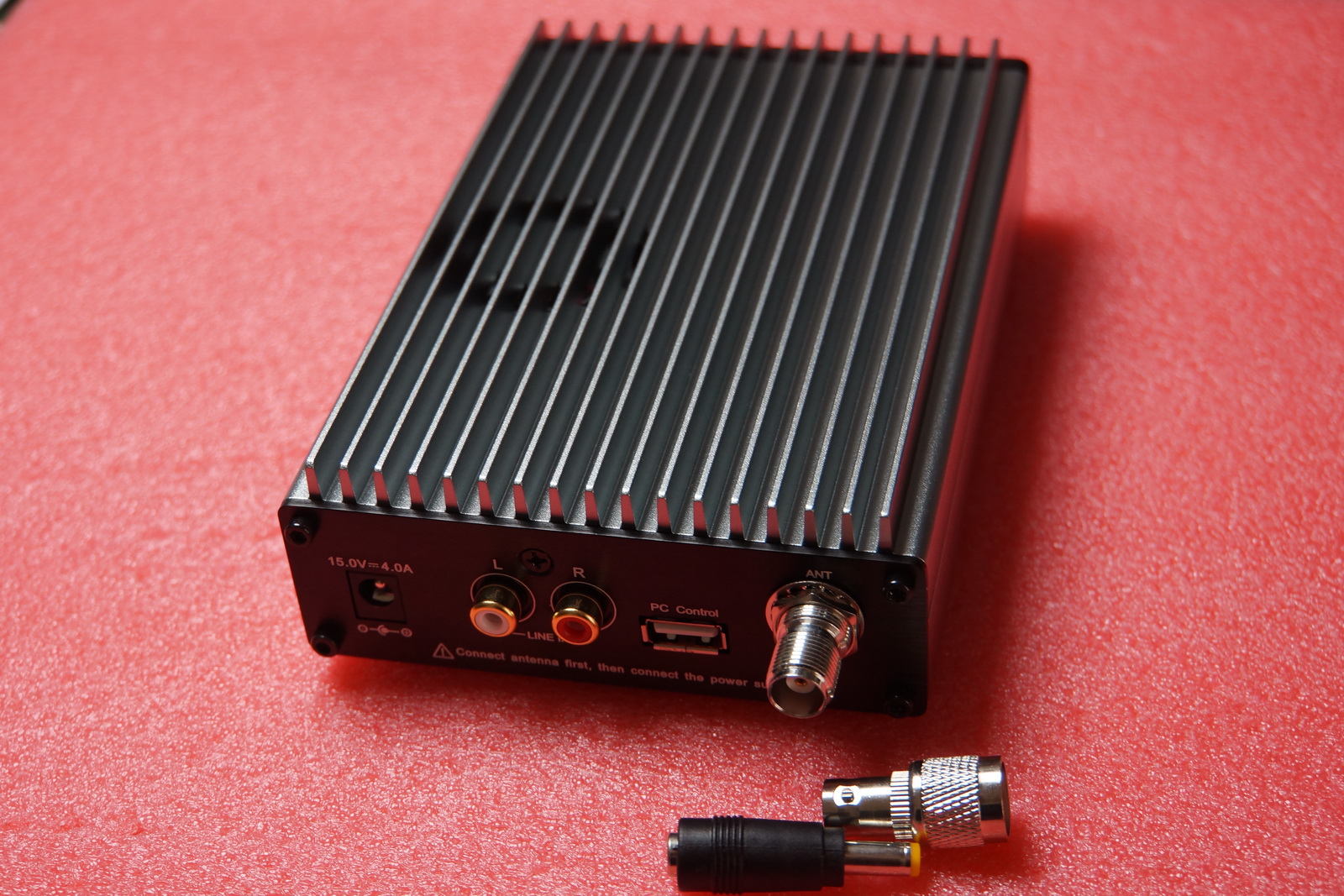

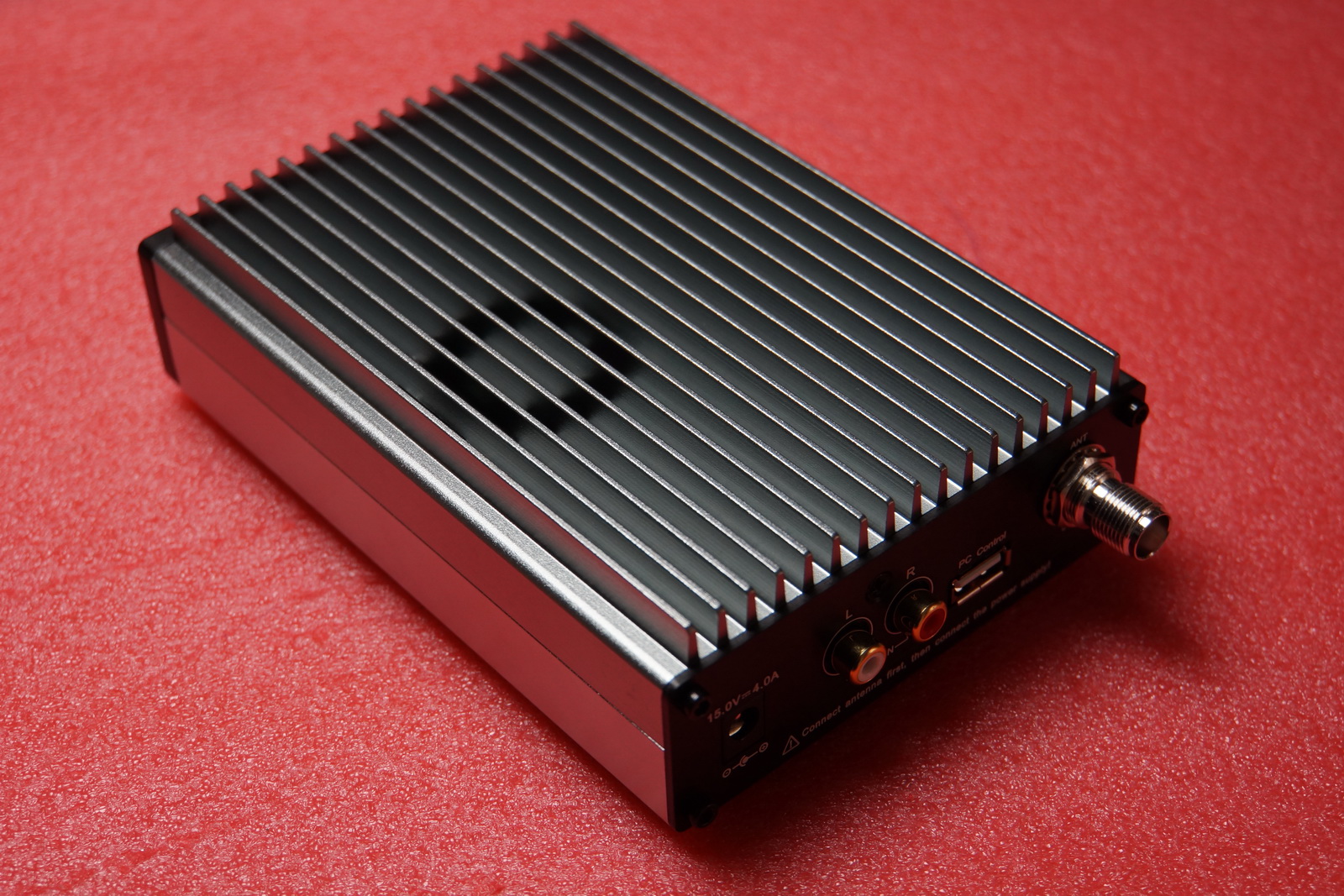

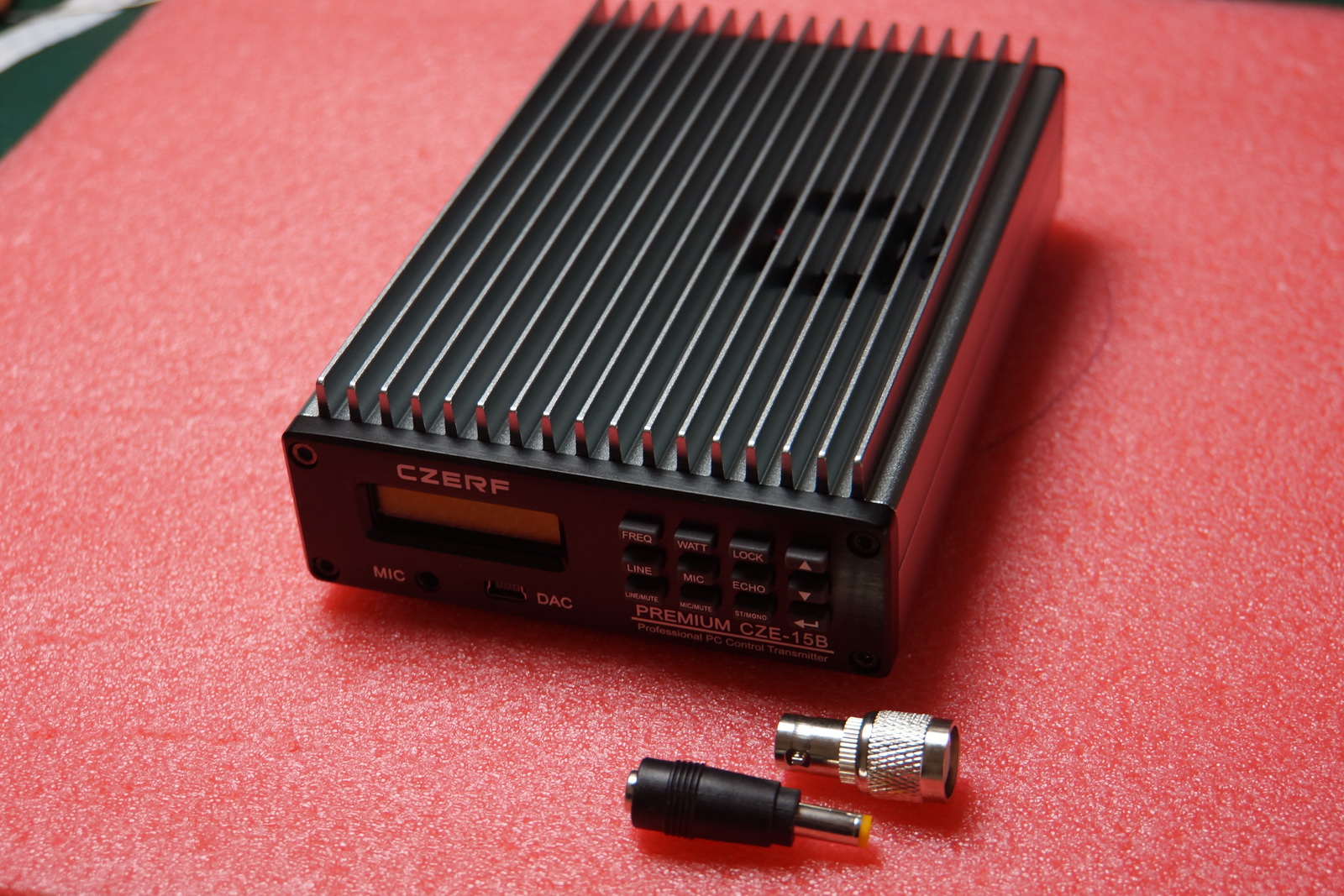

[CZE-15B-KITS] 0-15W FM Transmitter with Antenna and power supply

  • Model: CZE-15B-KITS
  • Shipping Weight: 3000g
  • 10 Units in Stock
  • Manufactured by: Camel RF

 Ask a Question

$189.00

Add to Cart:

FEATURES:

CZE-15B is a versatile FM transmitter with a variety of protection features , like high-fidelity sound, excellent harmonic, good clutter suppression.

CZE-15B application is flexible, convenient and suitable for a variety of short-range wireless radio. Such as schools,supermarkets, factories, railway stations, conferences, family and other places.

It can quickly set up a reliable wireless high-fidelity sound system or FM radio wireless acoustic system, the coverage between 3 m to 15 km depending on the environment, antenna and other factors.

Package includes:

  • CZE-15B 0-15Watt 87-108MHz FM Transmitter *1

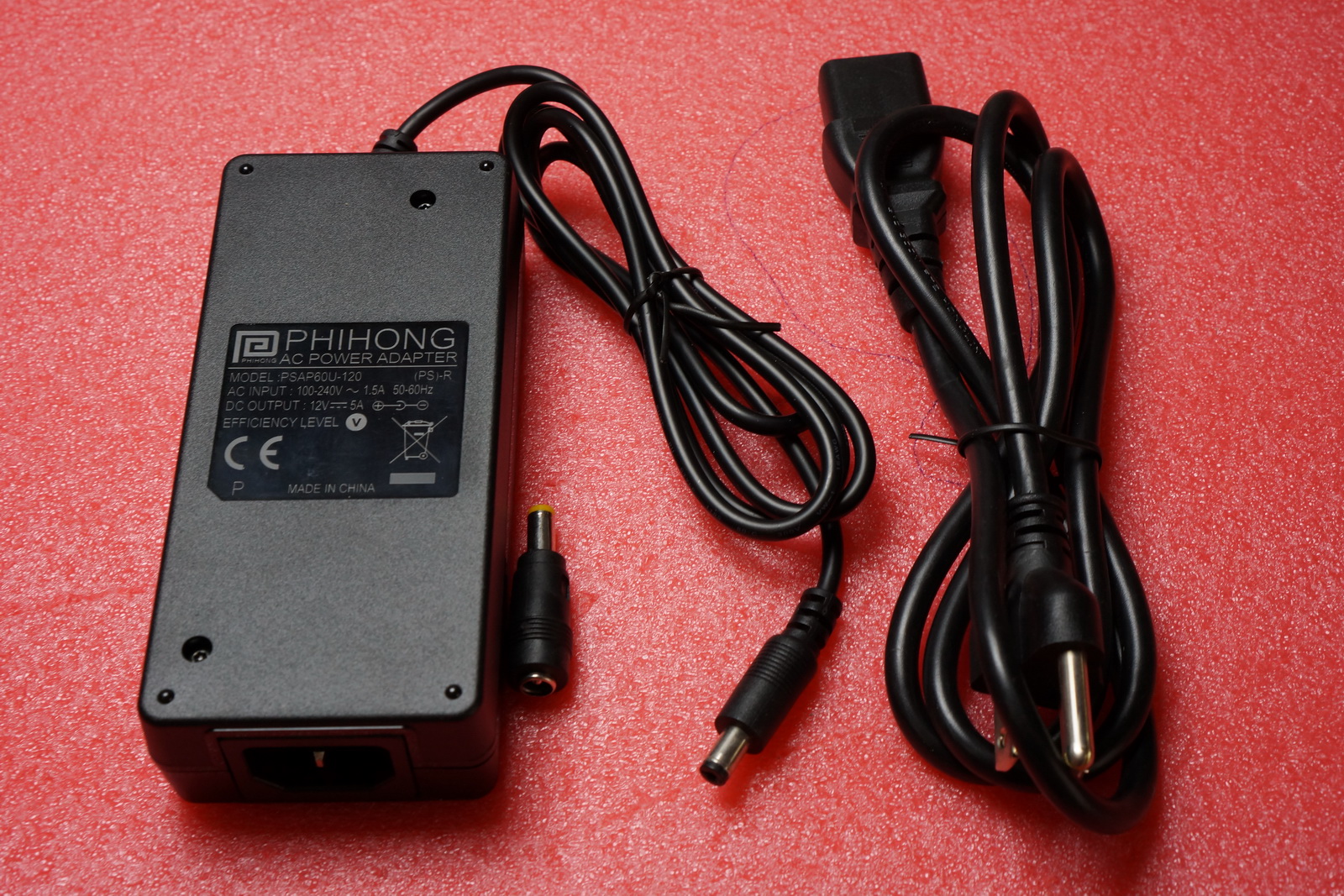

  • power supply *1

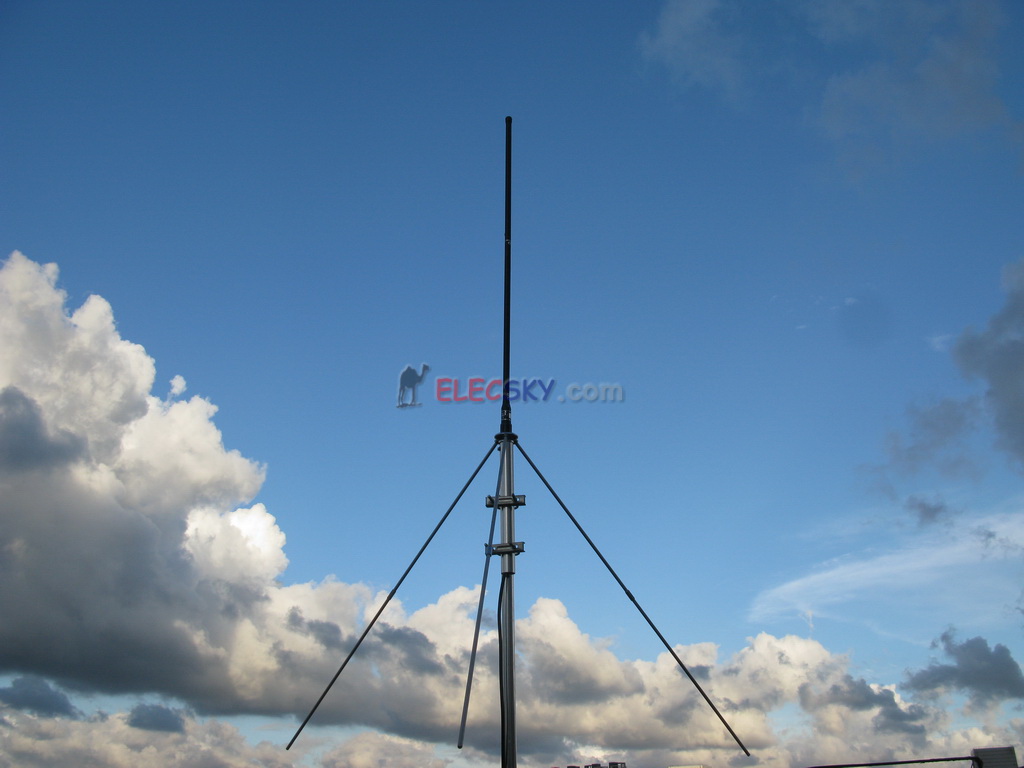

  • antenna with 15 meter cable *1
  • audio cable *1

Main features:

- transmit power continuously adjustable from 0W to 15W
- constant power, the whole band has 3 ~ 5W margin
- transmit power automatically lock
- microphone with reverb and can be turned on or off
- Single / dual-channel conversion can be
- with PC control port, through computer manipulation of the machine
- with audio digital-analog conversion, digital input products easier
- with VSWR protection, the antenna is not connected or do not match, the automatic access to protected
- with temperature protection, when the transmitter when the temperature is too high, automatically protected
- fan with temperature control switch, automatic start or shut down properly
- panel display and intuitive, simple operation, fast
- transmitter designed, durable

Technical parameters:

- Operating voltage 12V ~ 16V (rated voltage 15V)
- Current <4A
- Frequency range of 87 ~ 108MHZ
- Frequency stability ± 10PPM
- Frequency step 100KHZ
- Operating temperature range -10 ℃ ~ 45 ℃
- Antenna impedance 50Ω
- Transmit power range 0W ~ 15W
- Harmonics, spurious radiation ≤-60dB
- Audio Distortion 0.1%
- Frequency Response 50HZ ~ 15000HZ
- Separation ≧ 35 dB
- Input level -15 dBV (adjustable)
- Frequency deviation ± 75KHZ
- SNR ≧ 60 dB
- Machine size 173 mm (L) * 110 mm (W) * 48 mm (H)
- Weight about 700 grams

Package includes:



  • CZE-15B 0-15Watt 87-108MHz FM Transmitter *1
  • power supply *1
  • antenna with 8 meter cable *1
  • audio cable *1
