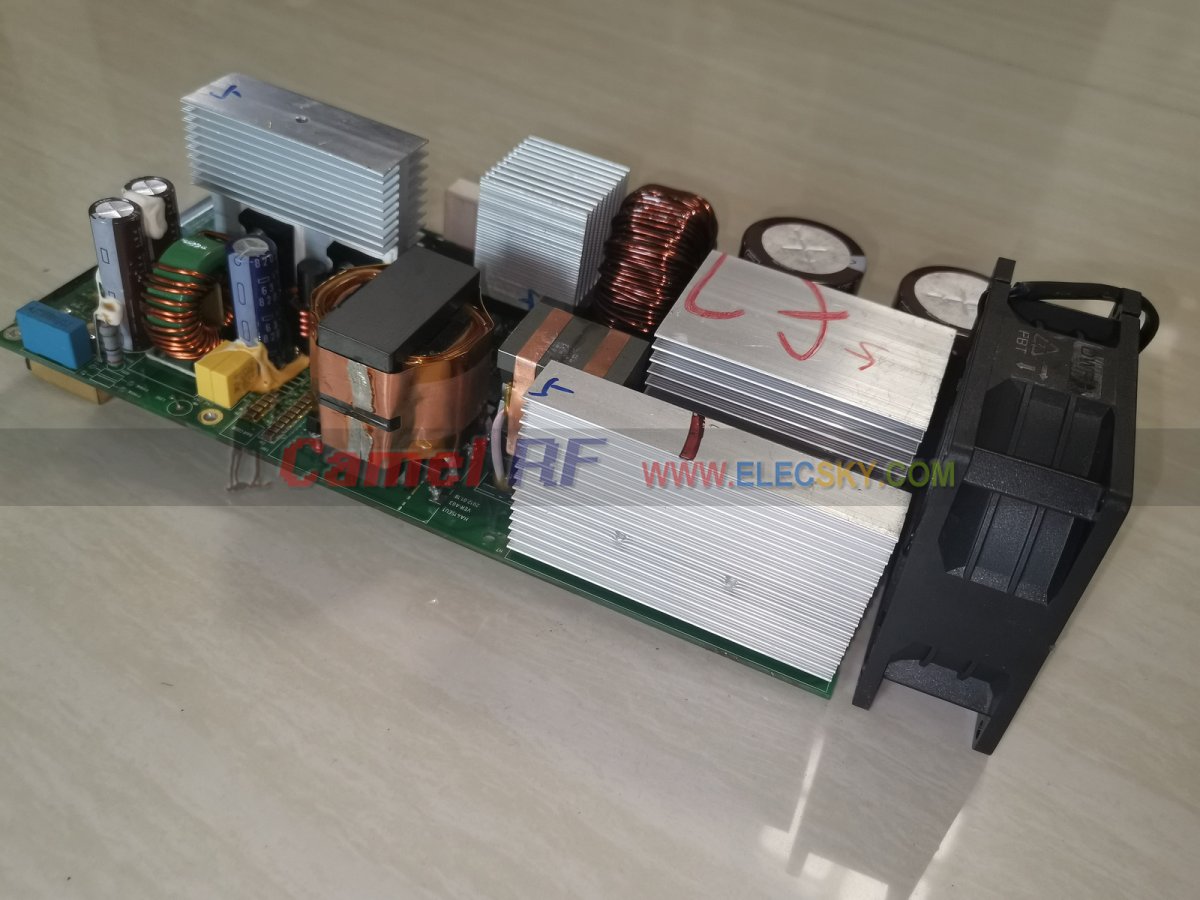

2900Watt 100V-260V to 48V Power Supply Board /Repair parts​

  • Model: R48-2900-PCB
  • Shipping Weight: 3000g
  • 10 Units in Stock

 Ask a Question

$220.00

Add to Cart:

Please note the screw installation position to match your original position.

>176Vac, the module maximum output power of 100% of the rated power is 2900W;
120Vac, the module maximum power output of 50% of rated power is 1450W;

85Vac, the module maximum power output of 18.75% rated power is 544W.

Below 45℃ ambient temperature, the module can output full power 2900W;
55℃ambient temperature, module maximum output power of 2320W;
60℃ ambient temperature, module maximum output power of 1450W;
65℃ ambient temperature, the maximum output power of the module is zero.

1.Environmental conditions:

Operating Temperature: -5℃ to 45℃, derating above 45℃
Storage temperature: -40℃ to 70℃
Relative humidity: ≤ 95% RH, non-condensing
Altitude: ≤ 2000m (above 2000m derating)
Cooling: forced air-cooled

2. Input characteristics:

Input Voltage Range: 100Vac ~ 260Vac, single-phase three-wire
Rated input voltage: 200VAC ~ 260VAC
The power derating input voltage range: 100Vac ~ 176VA
Does not work to withstand the maximum the static voltage: 415VAC should be
Rated input current: <16A @ 2900W
Maximum input current: <19A @ 2900W/176Vac
Input inrush current: <30A
Allows you to enter the grid frequency: 45 ~ 65Hz
Rated input grid frequency: 50Hz/60Hz

3. Output characteristics:

Output DC voltage range: 48V
DC output current: 0A to 60.5A
Regulation accuracy ≤ ± 0.5%
Load regulation rate ≤ ± 0.5%
Voltage regulation rate ≤ ± 0.1%
Boot on the red magnitude ≤ ± 1%

4. module Dimensions:

124.3mm (H) x 84mm (W) x 287mm (D)

5:Weight: ≤ 3.5kg
