1000Watt 48V active PFC switching power supply

Model: S-1000-48

Input voltage: AC 100~240V
Output voltage: DC 48V
Rated output current: 21A
Maximum output current: 24A
Rated output power: 1000W
Maximum output power: 1150W
Ripple (MAX): 230mv
Efficiency: 91%
Working temperature: -25~+45 degrees
Cooling method: air cooling (automatic control)
Weight: 1.4 kg

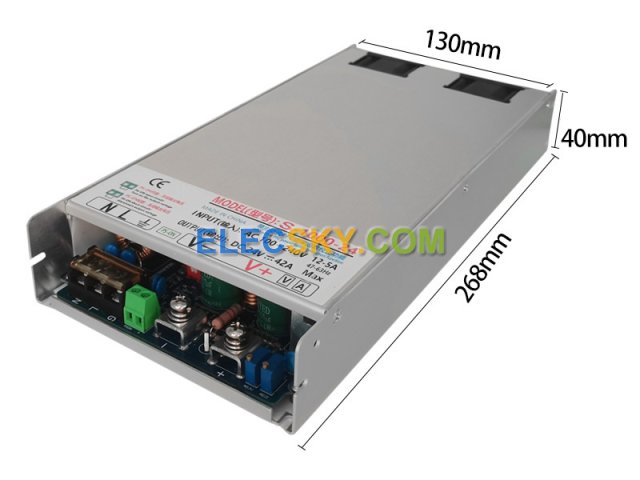

Size: Length 268mm x Width 130mm x Height 40mm
100~240V wide voltage input, no need to switch, with active PFC power factor correction function.
Output overload protection, output short circuit protection, high temperature protection,
