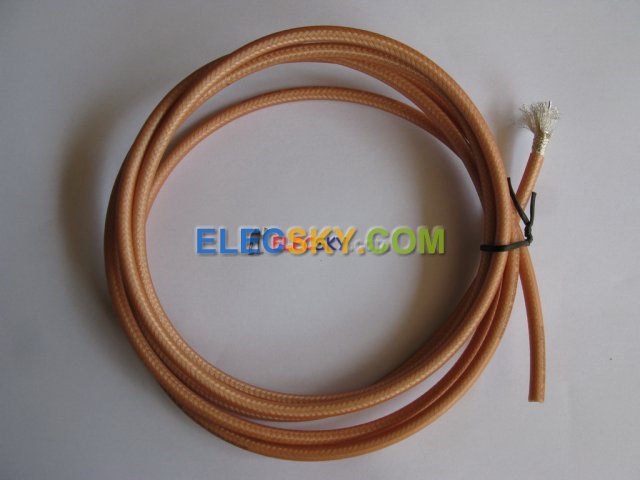

M17/60-RG142 HARBOUR INDUSTRIES Coaxial cable

  • Model: RG142
  • Shipping Weight: 250g
  • 8 Units in Stock

 Ask a Question


Add to Cart:

M17/60-RG142 HARBOUR INDUSTRIES Coaxial cable

US $ 12.00 per meter

Harbour Industries is a QPL approved manufacturer of high temperature, high performance coaxial cables supplied in exact accordance with the MIL-C-17 specification. The information referenced has been taken from the MIL-C-17 “slant sheets” which define complete physical and electrical characteristics for each MIL-C-17 part number including dimensional parameters, dielectric materials, shield constructions, VSWR, and maximum attenuation over various frequency ranges. For complete individual slant sheets, see the Defense Supply Center Columbus (DSCC) link in the Industry Links section of Harbour’s website.

The Importance of VSWR Sweep Testing

When selecting a 50 ohm coaxial cable, constructions with VSWR requirements are highly recommended. Manufacturing and sweep testing cables with concern for VSWR ensures a quality cable free of spikes over the frequency range referenced on the slant sheet.

Precision PTFE Dielectrics Used

All of the PTFE dielectric coax cables listed are high temperature, high performance constructions exhibiting high
dielectric strength and low capacitance in proportion to the cable’s dielectric constant. Harbour manufactures all PTFE
dielectric cable constructions with tolerances tighter than the MIL-C-17 specification to ensure uniformity of electrical
characteristics, especially impedance, attenuation, and VSWR.

M17 Part: M17/60-RG142

Center Conductor:.037" SCCS
Dielectric Diameter: .116"
Shield:SPC (2)
Shield Diameter:.160"
Overall Diameter:.195"
Bend Radius:1.0"
Weight (lbs/mft):43.0 +/-2
Impedance (ohms):50
Capacitance (pF/ft):29.4
Max Voltage:1900

Attenuation (dB/100 ft)

100 MHz (Typ/Max):4.0/4.4
400 MHz (Typ/Max):8.1/9.3
1 GHz (Typ/Max):13.4/15.3
2.4 GHz (Typ/Max):21.3/25.0
5 GHz (Typ/Max):33.3/41.8
10 GHz (Typ/Max):55.5/70.7
Max Frequen (GHz):12.4

This product was added to our catalog on Monday 07 November, 2011.
