[PM-1B]High Power High Precision RF Power Meter 80-110MHz / 6000W

Overview

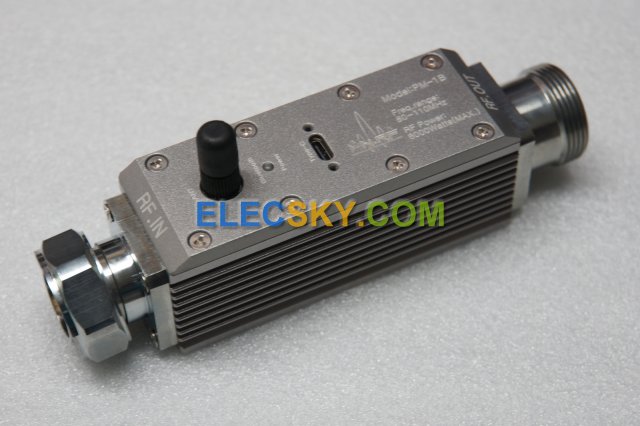

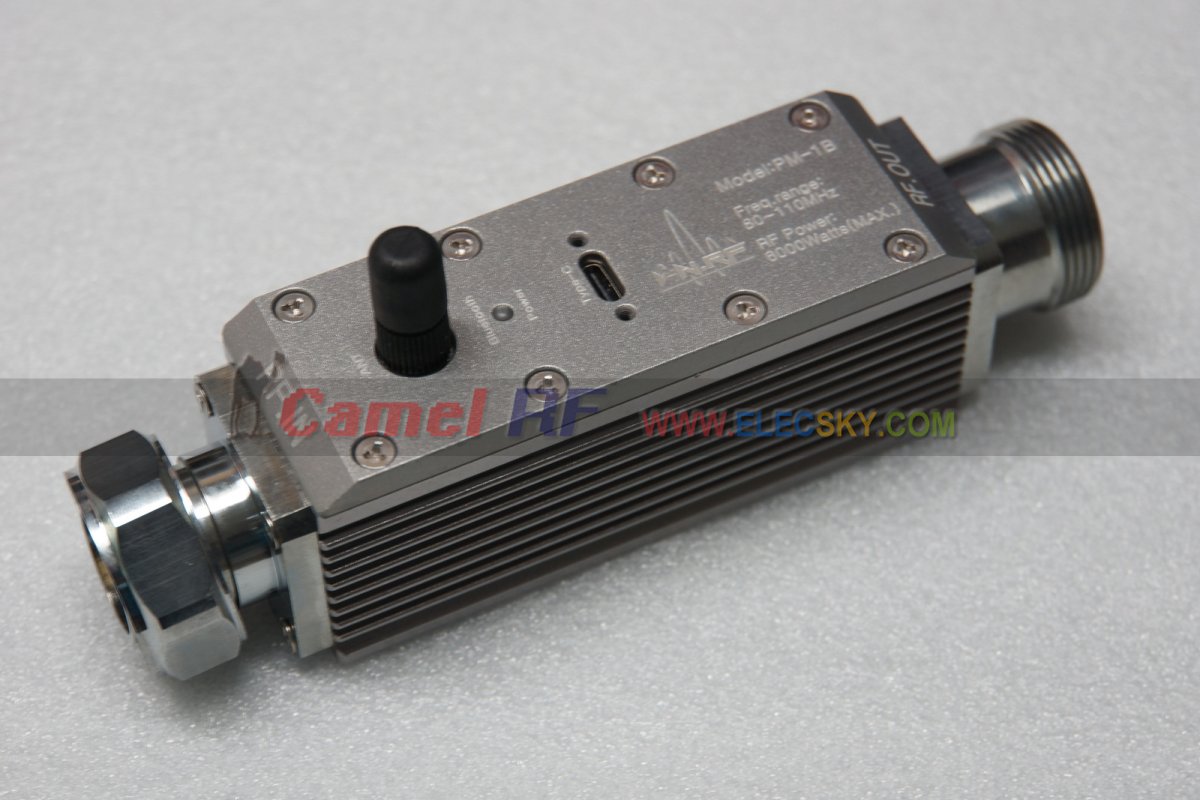

It adopts a high-precision, high-power RF two-way detection power meter composed of a fully CNC precision-machined cavity coupler and a high dynamic range detector, and is connected by Bluetooth for application.

Functional features

•  Integrated model CNC precision machined cavity coupler.
•  The built-in high-precision temperature sensor compensates for the measurement error caused by temperature.
•  The Bluetooth 5.0 communication connection can get rid of the shackles of the wire and also improve the anti-interference ability.
•  Stable application, can support Android, Hongme, PC viewing.

Specification

Model: PM-1B

Frequency: 80-110MHz,（Measurements outside this range are still possible, but the accuracy is unknown.）

Measuring power range: 0.1~6000W, (It is recommended to measure less than 3KW for a long time, exceeding the range may damage the detector.)


Measurement signal: CW

Input VSWR: ≤1.02

Coupling isolation: ≥40dBc

Input Connector: L29 DIN Male

Output Connector: L29 DIN Female

Input & Output Impedance:  50Ω

Power supply: type-C 5V

Data connection: Bluetooth

Altitude: <4500M

Dimensions: 152 x 35 x 40 mm (excluding  protrusions).

Weight:  600g

Model:PM-1B
Freq. Range: 85-110MHz
RF Power: 6000Watts(max.)

Bluetooth connection, Android/IOS APP monitoring.
