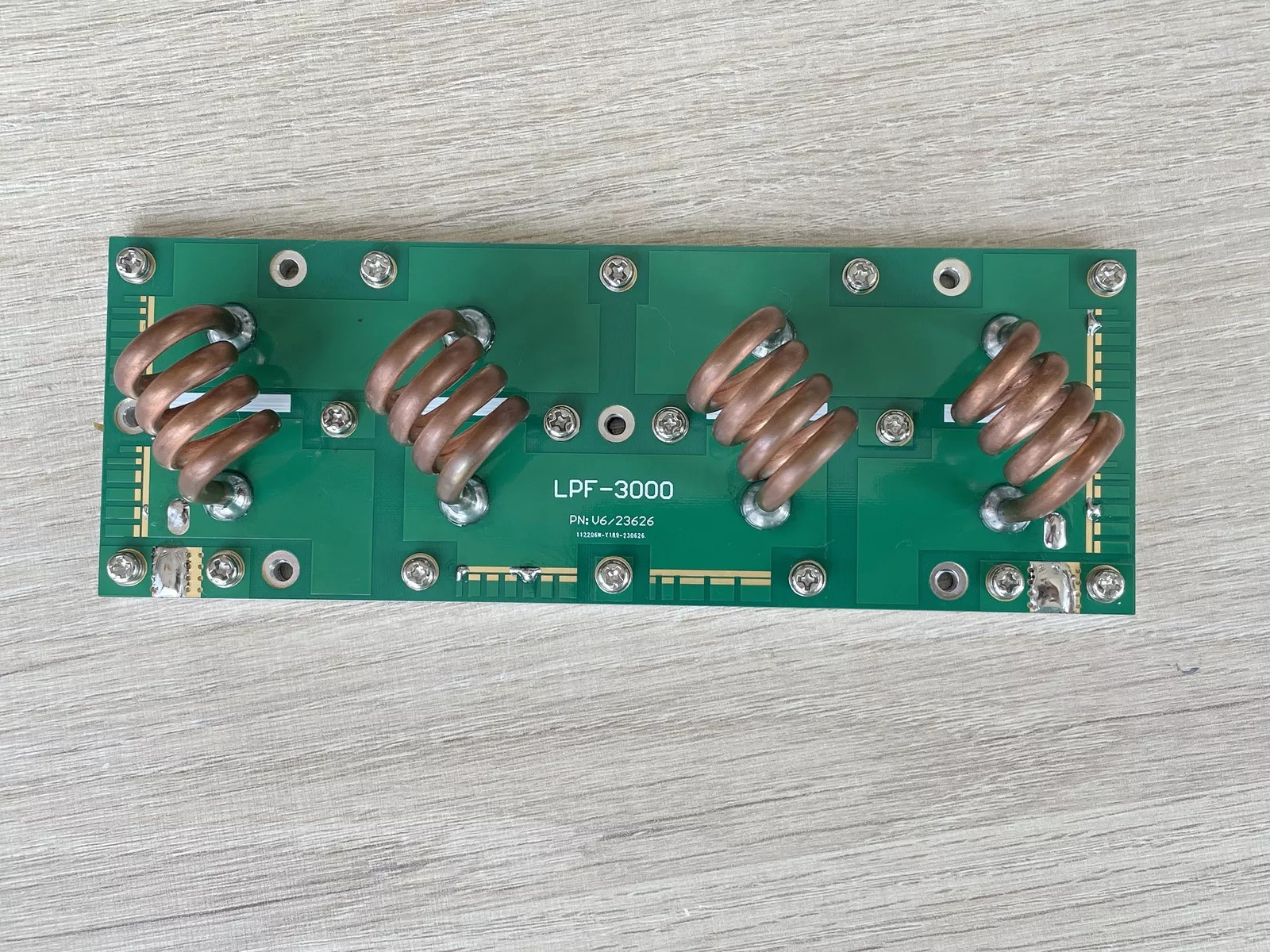

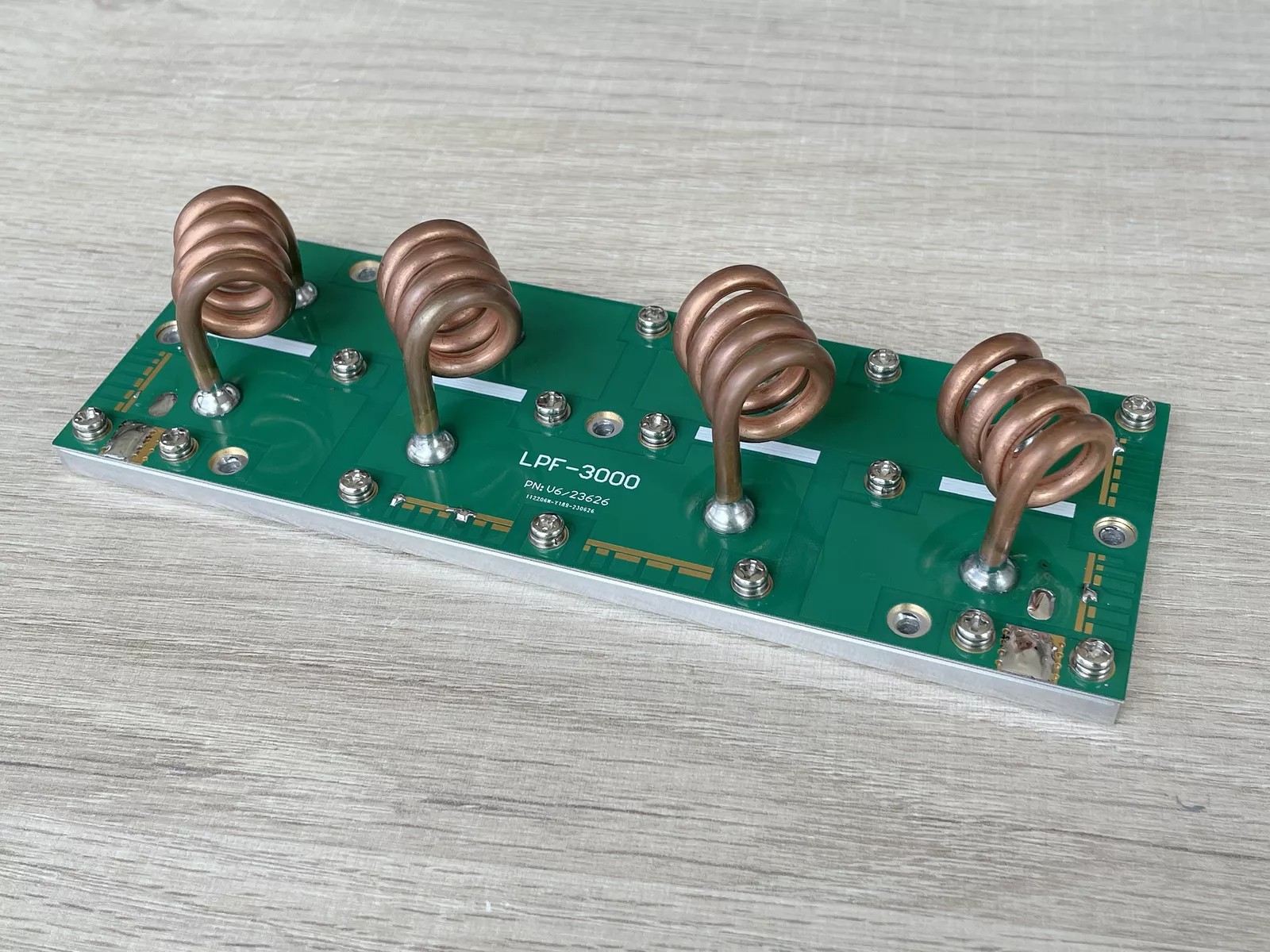

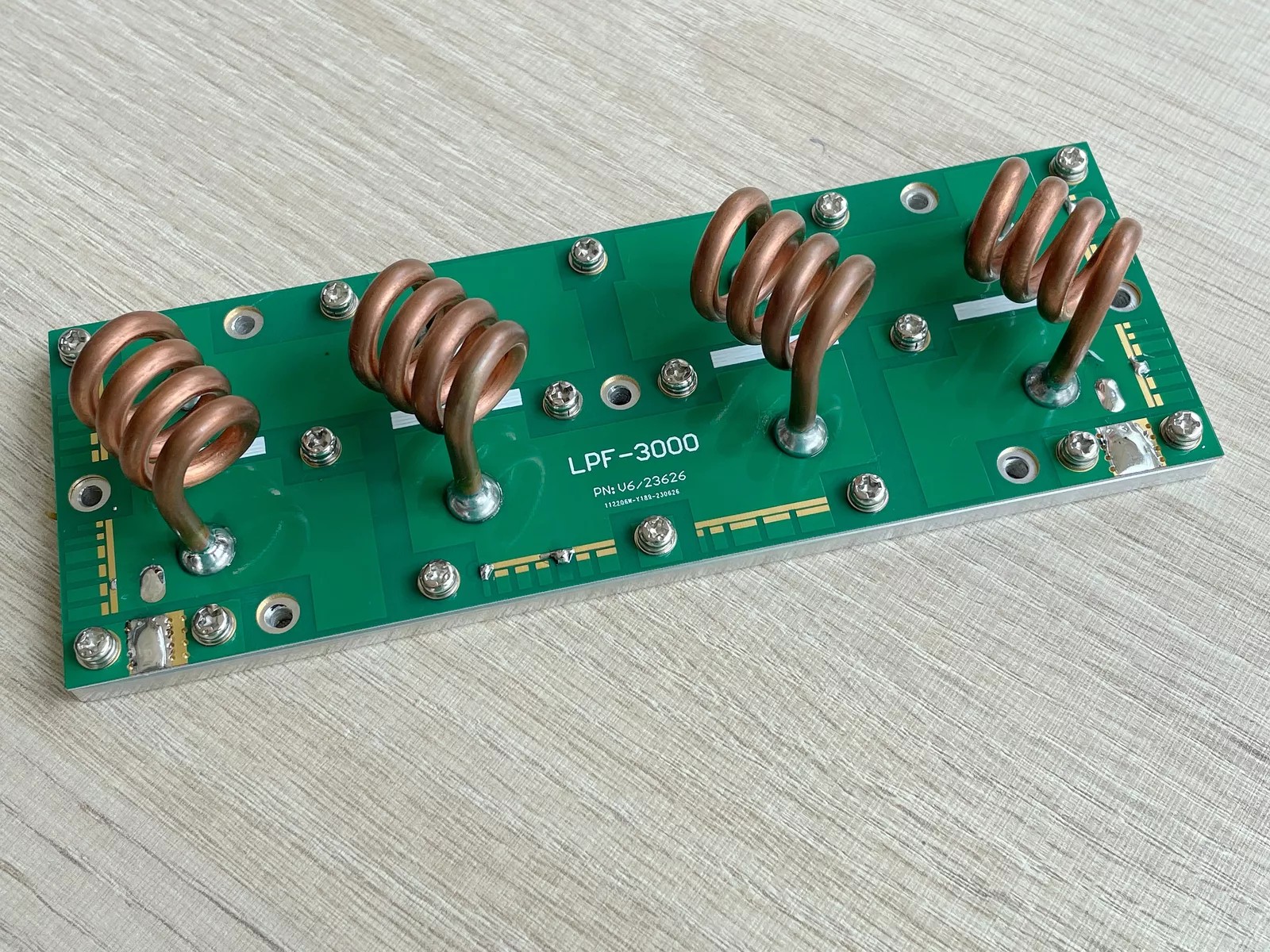

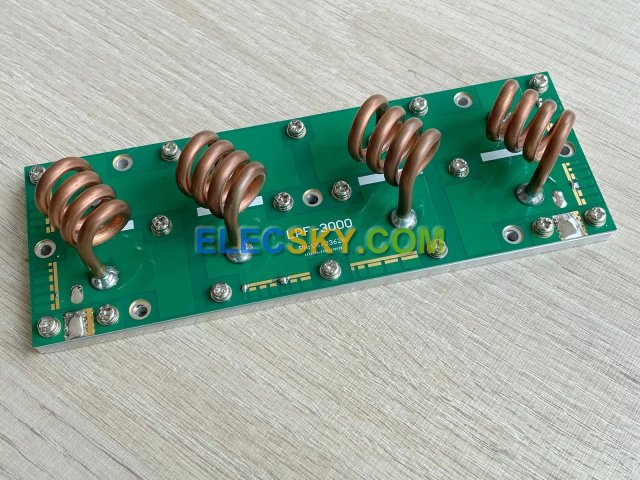

LPF-3000 FM broadcast Low Pass Filter 3000W 3KW LPF Pallet 87.5-108MHz

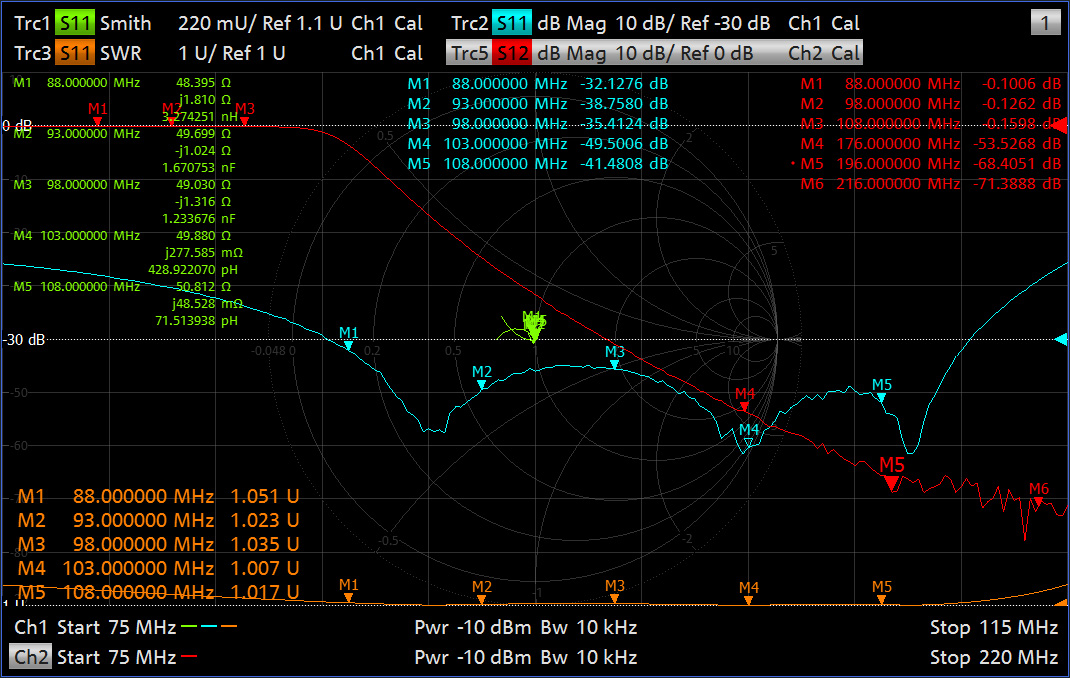

Technical specifications:

– Frequency rang:  87.5-108MHz

– Input/Output Impedance: 50 Ohms

– Return loss: 32dB min.

– Insertion Loss: 0.13 dB typ.

– Stop-band attenuation: >54dB @176MHz

– Size: 170mm x 60mm x 35mm (LxWxH)

– The filter includes 6mm aluminum base, factory installed.

– Power handling: >3000 Watts with forced air ventilation

– Input/Output Connectors: solder pads for coax

– Duty Cycle Rated for continuous operation with forced air cooling
