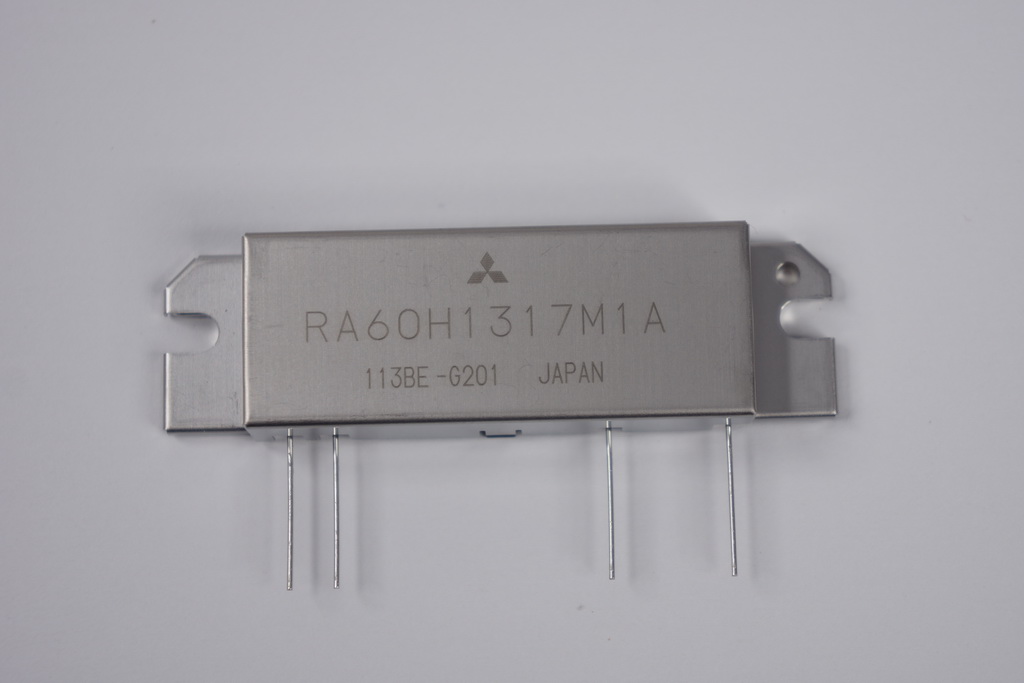

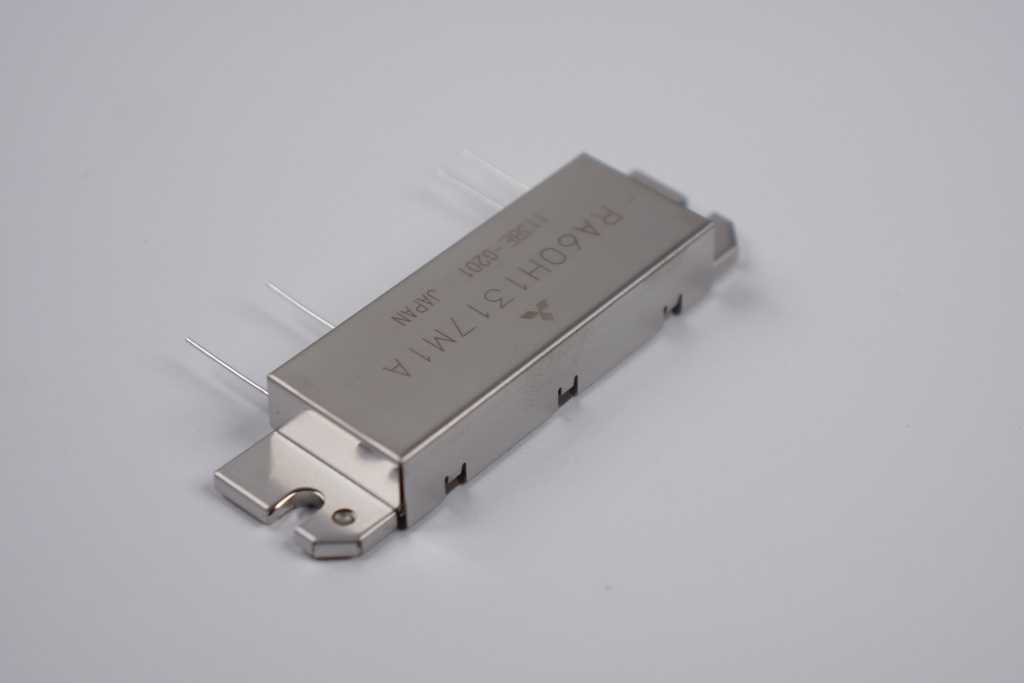

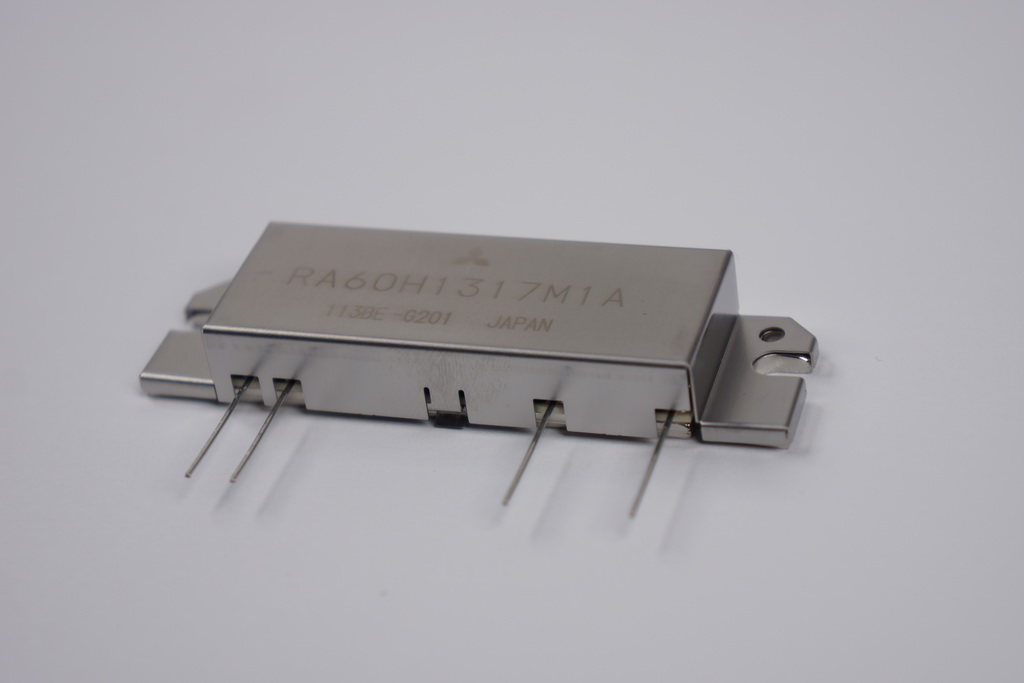

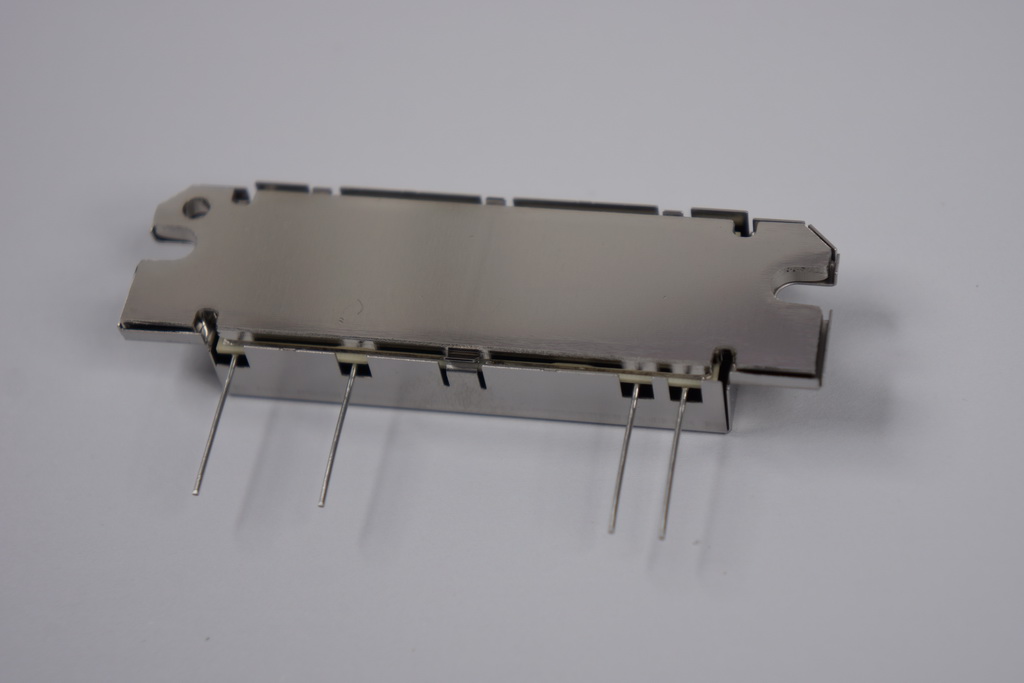

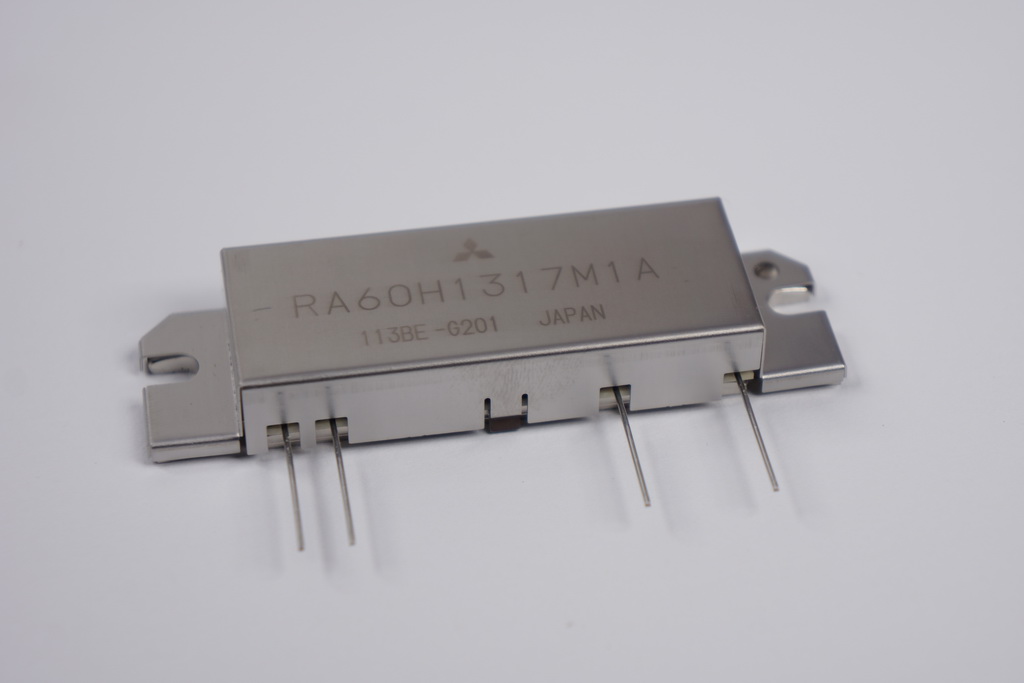

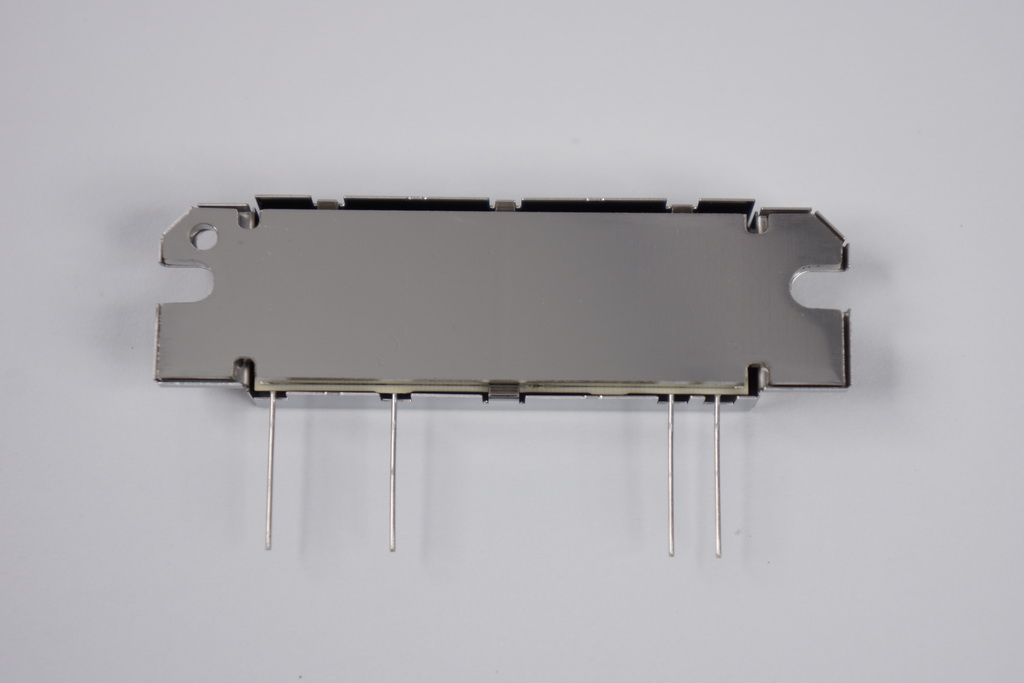

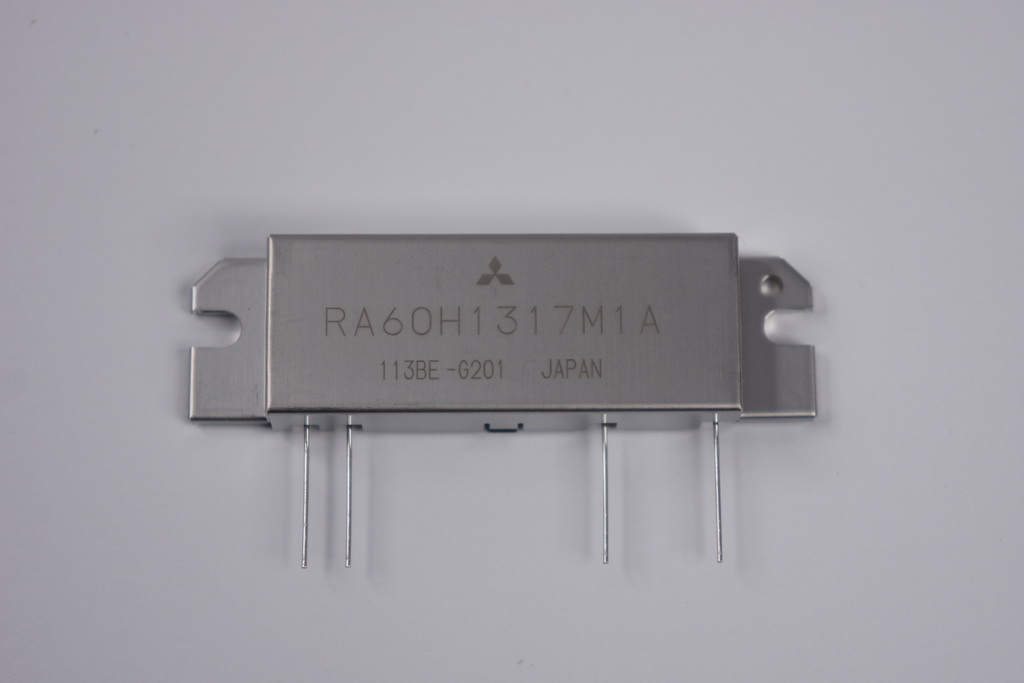

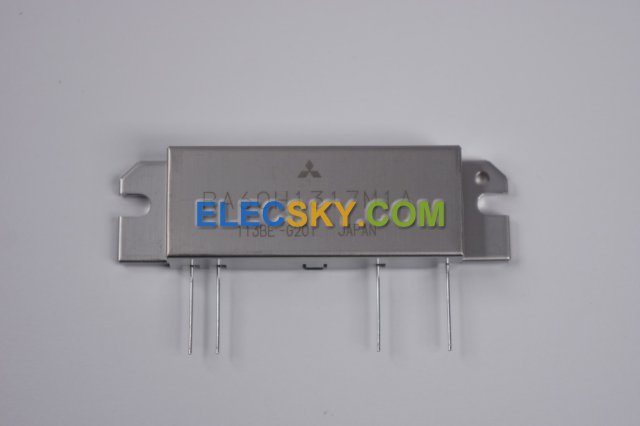

RA60H1317M1A - RoHS Compliance ,136-174MHz 60W 12.5V, 2 Stage Amp. For MOBILE RADIO - Mitsubishi Electric Semiconductor


The RA60H1317M1A is a 60-watt RF MOSFET Amplifier Module for 12.5-volt mobile radios that operate in the 136- to 174-MHz range.
The battery can be connected directly to the drain of the enhancement-mode MOSFET transistors. The  output power and drain current increase as the gate voltage increases.  With a  gate voltage around 4V (minimum), output power and drain current increases substantially. The  nominal output power becomes available at 4.5V (typical ) and 5V (maximum). At VGG=5V, the typical gate current is 1 mA. This module is designed for non-linear FM modulation,  but  may also be used for linear modulation by setting the drain quiescent current with the gate voltage and controlling the output power
with the input power.
• Enhancement-Mode MOSFET Transistors
(IDD≅ 0  @ VDD=12.5V, VGG=0V )
• Pout>60W, η T >45%  @ VDD=12.5V, VGG=5V , Pin=50mW
• Broadband Frequency Range: 136-174MHz
• Low-Power Control Current IGG=1mA (typ ) at VGG=5V
• Module Size: 67 x 18 x 9.9 mm
• Linear operation is possible by setting the quiescent drain current with the gate voltage  and controlling the output power with the input power
