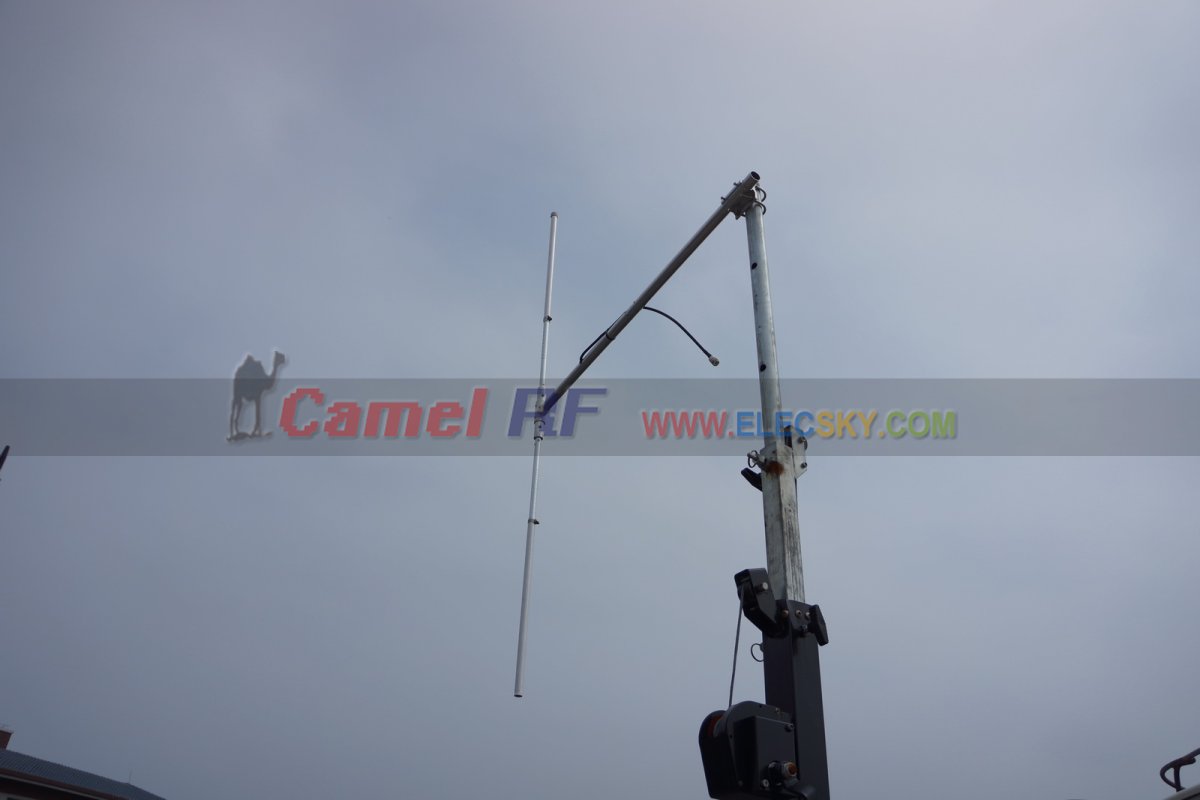

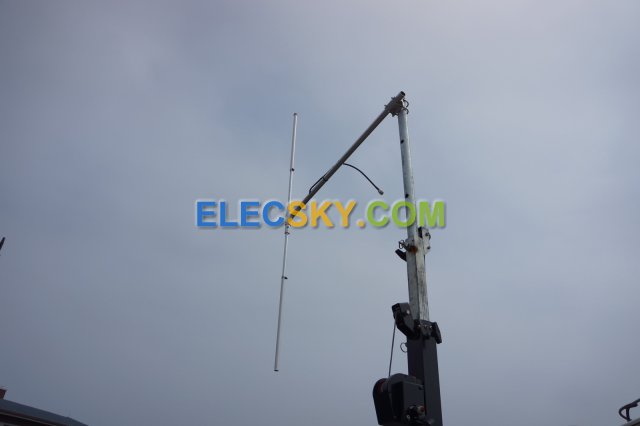

DP-100 150Watt 1/2 Half Wave FM Dipole Antenna 88-108MHz

US $100.00



DP-100 Exclusive 1/2 Half Wave FM Dipole Antenna
High gain outdoor Dipole antenna 88 to 108mhz for FM Transmitter up to 150w+8M Cable



A dipole antenna is a radio antenna that can be made of aluminum, copper, and bronze  tube  with a center-fed driven element. It consists of two metal conductors of rod, oriented parallel and collinear with each other (in line with each other), with a small space between them.

The dipole antenna is a particularly important form of RF antenna which is very widely used for radio transmitting and receiving applications. The dipole is often used on its own as an RF antenna, but it also forms the essential element in many other types of RF antenna. As such it is the possibly the most important form of RF antenna.

A half-wave dipole antenna means the length of this dipole antenna is equal to a half-wavelength at the frequency of operation.

Electrical specification:

Frequency range: 88~108 MHz ( 1MHz stepping)
Input Impedance Impedance:50 ohm
VSWR <1.5
Gain:3.5 dBi
Polarization: Verticality
Maximum Power Input: 150W
Horizontal 3dB Beam Width:360 °
Vertical 3dB Beam Width:73 °
Mechanical Specifications:
Height: 990mm
Radiating Element Material:Aluminum Alloy
Connector:SL16-K
Holding Rod Diameter: Φ30~Φ40 mm

Package Include:

1* DP-100 Dipole Antenna
1* High quality 8 meter Coaxial cable N-male connector




Add to Cart:

  • Model: DP-100 -ANT
  • Shipping Weight: 2500g
  • 5 Units in Stock
