50-12 1/2' Coaxial cable 30 meter with 2* DIN( L29) male connector

US $110.00

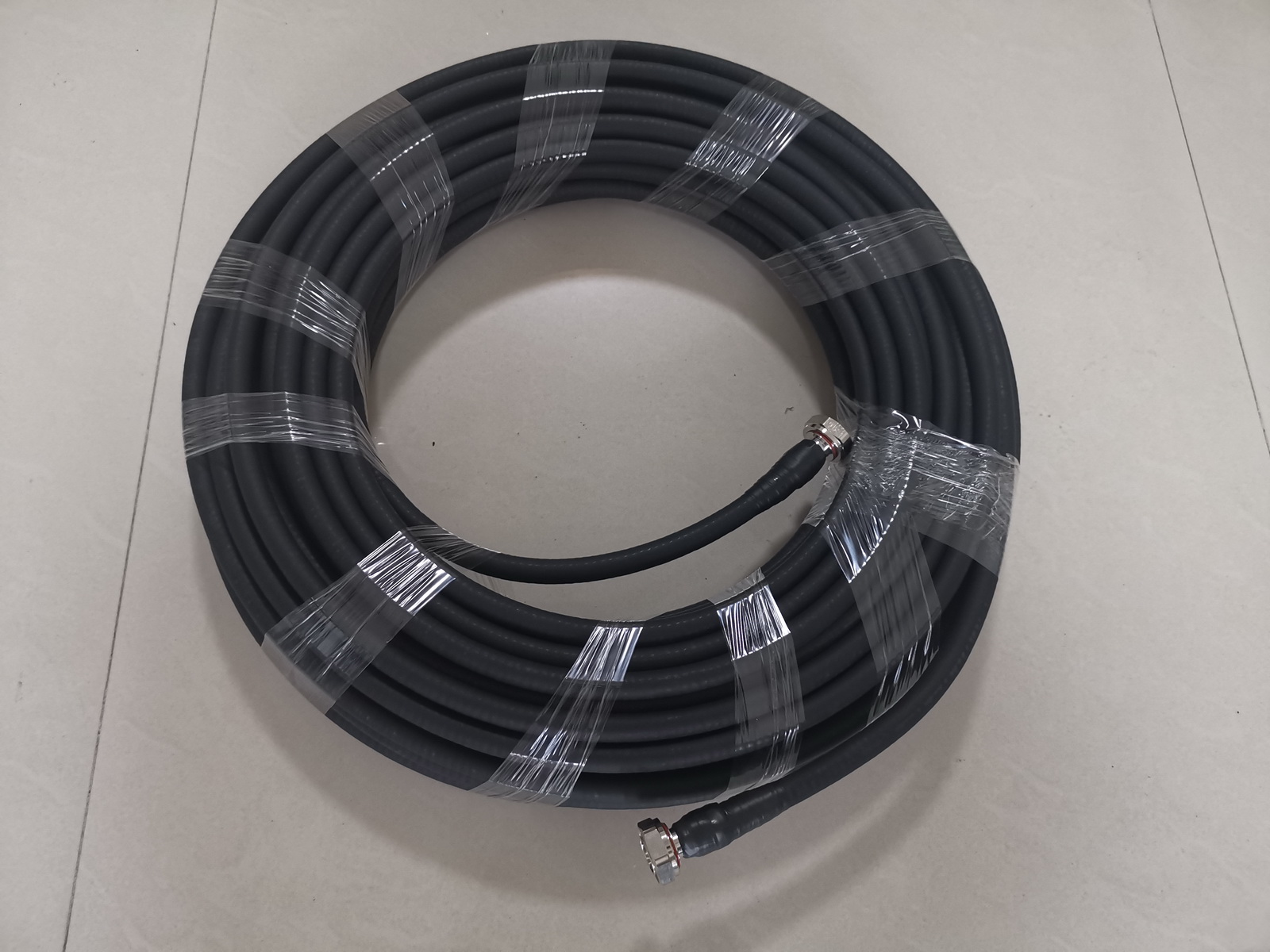

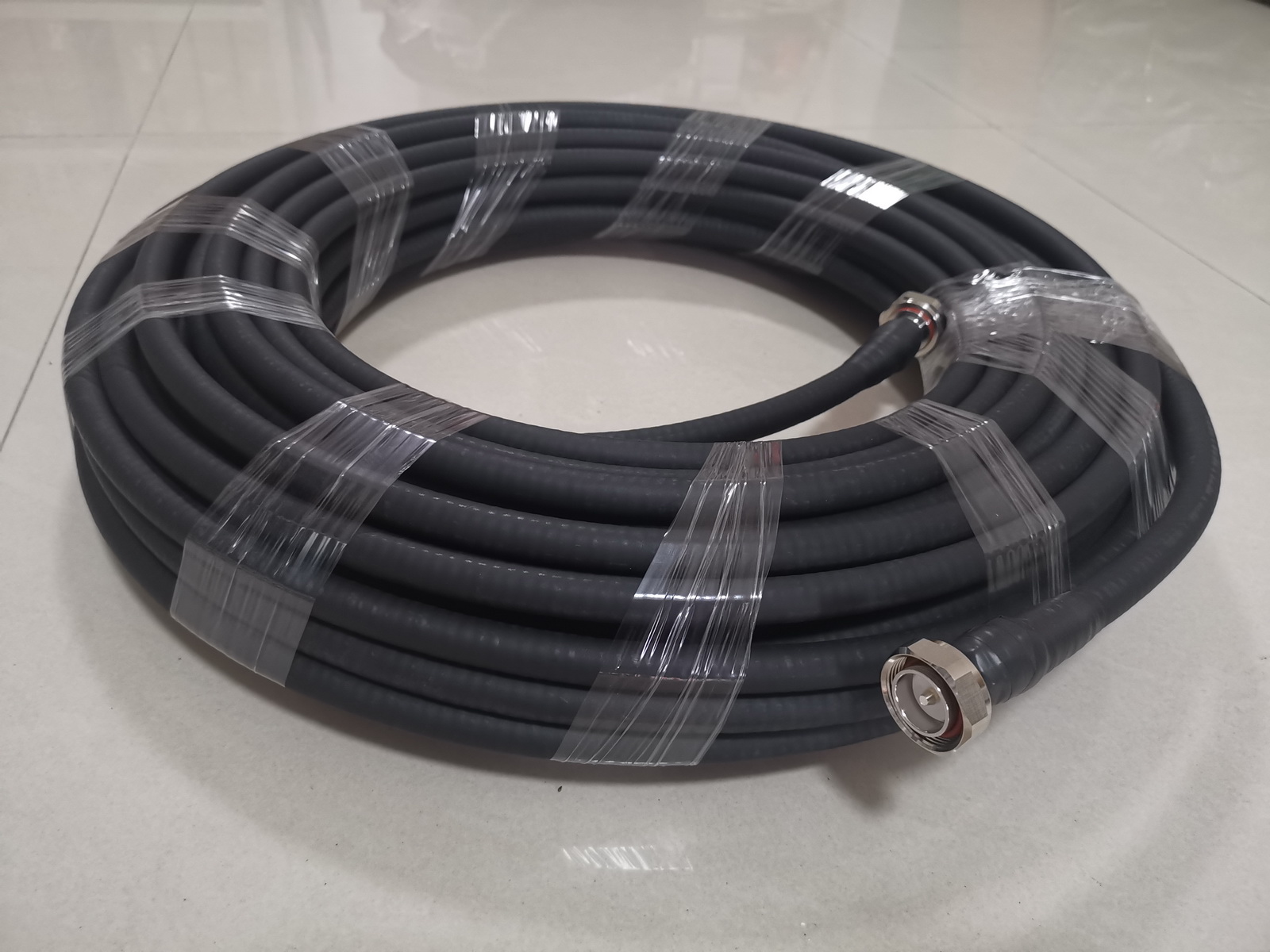

50-12 1/2' Coaxial cable 30meter( 100 feet) with DIN L29 and DIN L29 connector

Length: 30 Meter

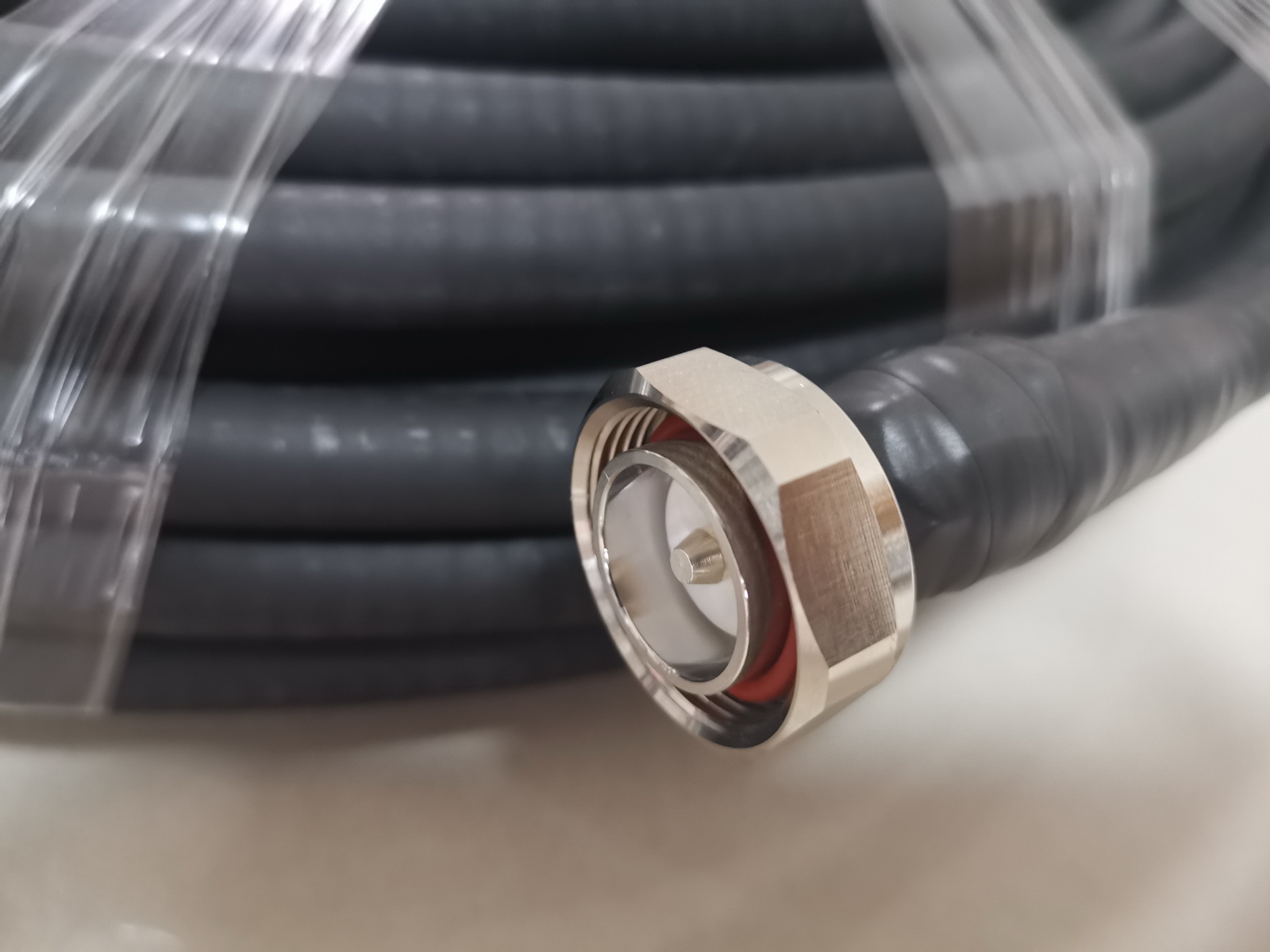

Connector Type: 7/16 DIN L29 Male x2

Applies to:  FMT2.0-1000H, FMT3.0-1000H, FMT5.0-1000H, FMT5.0-1500H, Warner RF 1000W and 1500W FM transmitter to DP-2000(DP-2K) dipole antenna connection.

WYSIWYG

FEATURE

  • Cable type: 50-12 1/2'' Corrugated coaxial cable.
  • L29 DIN+DIN male connectors on each cable end.
  • Length: 30 meters.

Structure size

project diameter material
Inner conductor 4.8mm Copper clad aluminum wire
Insulator 12.3mm Foamed polyethylene
Outer conductor 13.9mm Ring wrinkle copper tube
Outer sheath 15.7mm Polyethylene / flame retardant polyolefin

Mechanical property

project standard remark
Static minimum bending radius 70mm Single bending
Dynamic minimum bending radius 120mm Repeated bending 15 times
Tensile force 1200N
Cable weight 22kg/100m

Electrical performance

project standard remark
Characteristic impedance 50±1Ω
Transmission ratio 88% nominal value
Minimum insulation resistance 500MΩ km DC500V 1 minute
capacitance 76pF/m nominal value
Withstand voltage DC4000V 1 minute
Rated peak power 40KW
Peak voltage 1800V
Typical voltage standing wave ratio 1.08

Attenuation factor and rated average power

frequency attenuation(dB/100m) average power (KW)
10 0.68 13.0
100 2.21 3.94
150 2.73 3.20
200 3.18 2.75
300 3.94 2.23
450 4.90 1.80
500 5.19 1.71
700 6.23 1.45
800 6.70 1.33
900 7.15 1.25
1000 7.58 1.18
1500 9.50 0.947
1700 10.19 0.884




Add to Cart:

  • Model: 50-12 DIN-DIN 30M
  • Shipping Weight: 8000g
  • 95 Units in Stock



This product was added to our catalog on Wednesday 10 June, 2020.
